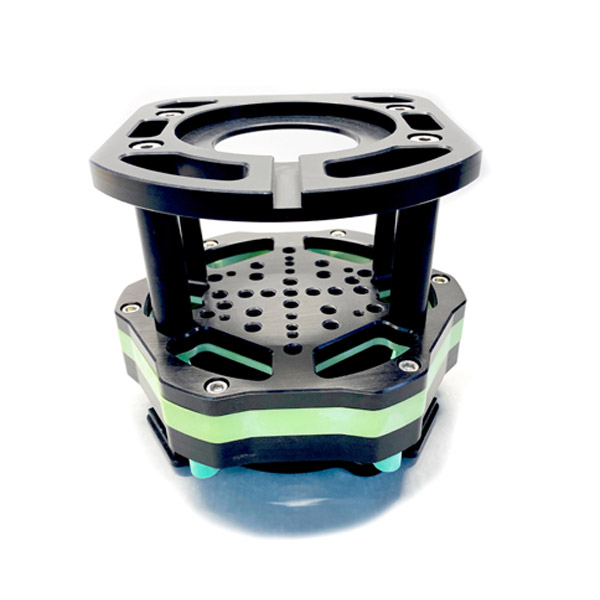

The Vybris is the new way of vibration isolaton, specifically designed around the geometry of a
electronic gimbal device.

The Vybris dampens vibrations from mountings such as car rigs, dollies, rickshaws, cranes and arms by isolating high-
frequency vibrations and dampens low-frequency oscillations of the gimbal and camera.



• Underslung & Overslung
• Silicone-Magnetic dampening
• Quick damping configuration
• Various platform setups
• 8 – 52 kg Payload range – depending how it is used
• Unique joint design
• Useable with any equipment/mounting platform (crane, dolly, Hybris, VacuMount,…)
• No effects of any environmental conditions (heat, cold,…)

Advantage:

High frequent stabilization especially for tiny high frequency vibrations.

Very fast reaction time to position changes.

No effect of environmental conditions -30° up to + 100° C

No liquids

Accessories

Mitchell Male + Standard Plate

Mitchell Female + Mitchell Male

Mitchell Female + Standard Plate

Payload range

System Specification

Dimensions Vybris

  • min/max. payloads

    8 kg – 52 kg / 17,6 lbs – 115 lbs

  • Vybris weight appr.: 2 kg / 4,4 lbs

Additional Data:

Ambient temperature:

-30°C to + 80°C
-22°F to + 176°F

Download

Leaflet Vybris  *.pdf

Instruction Manual Vybris  *.pdf

  • Length: 192 mm / 7,55 ́ ́

  • Width: 177,5 mm / 7 ́ ́

  • Hight: 48 mm /1,9 ́ ́

Payload:

  • min/max. payloads

    8 kg – 52 kg / 17,6 lbs – 115 lbs

  • Vybris weight appr.: 2 kg / 4,4 lbs

Additional Data:

Ambient temperature:

-30°C to + 80°C
-22°F to + 176°F

Download

Leaflet Vybris  *.pdf

Instruction Manual Vybris  *.pdf
